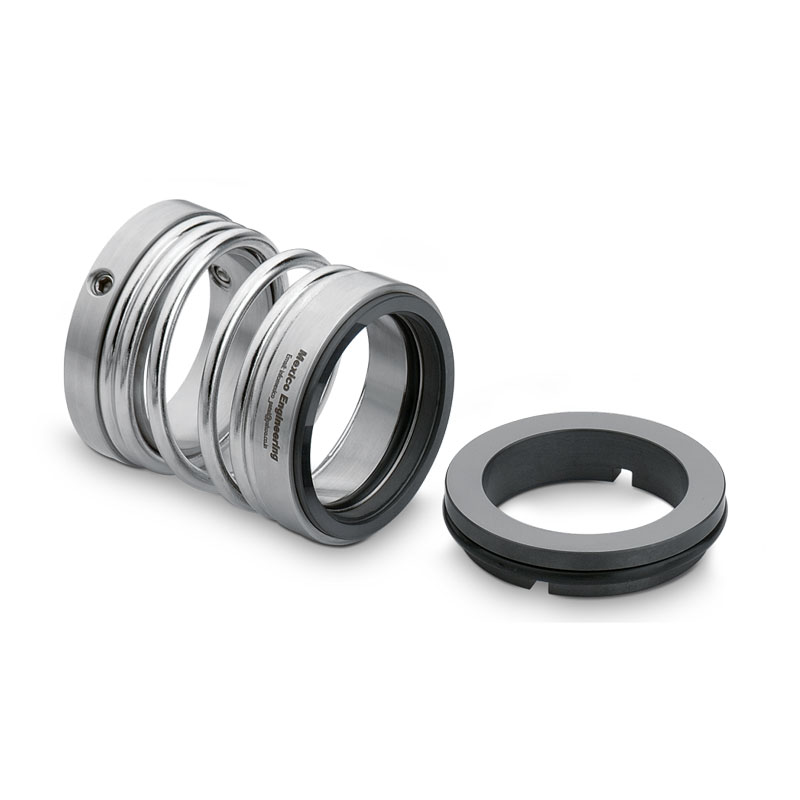

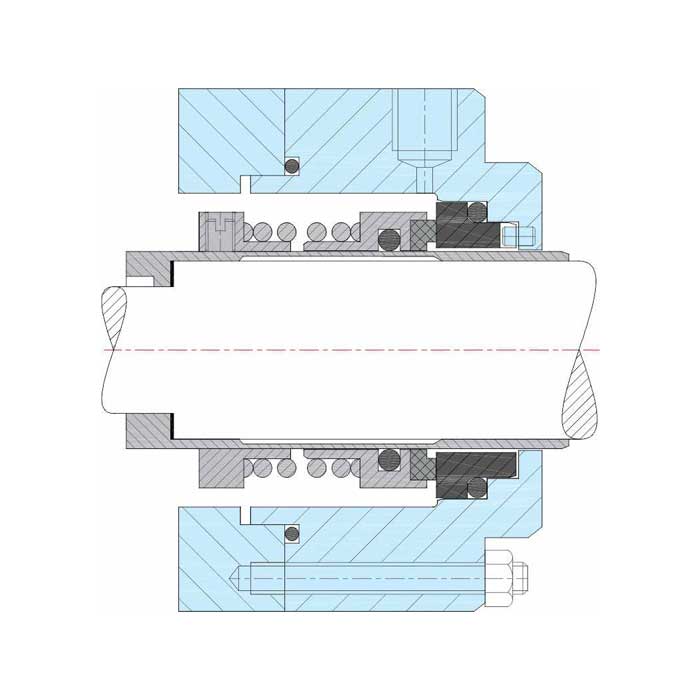

Single Spring Unbalance Seals – Series 14U
Series 14U are single spring seals. These seals are easy to install and operate for different application being used in various industries. These seals are compact in design for handling liquids of varying contamination including Slurries Sludge, sewage, Viscous and crystallizing Solution. These Seals are designed in both balanced and unbalanced version based on pressure parameters. Spring clogging does not occur in single spring seals.
Seal features
- Single seal
- Inside mounted
- Unbalanced
- Depended on direction of rotation
Applications
- Petrochemicals
- General Chemical
- Light hydrocarbons
Operating limit
- Seal size : 14 mm to 90mm
- Pressure : 10 kg/cm2
- Temp : -30°C…. to 150°C
- Speed : up to 20 m/s
Material
- Seal face : Carbon, ceramic, silicon tungsten carbide,
- Secondary sealing : Viton, PTFE, Aflas
- Metal parts : SS316 , Hastelloy c, Alloy-20
