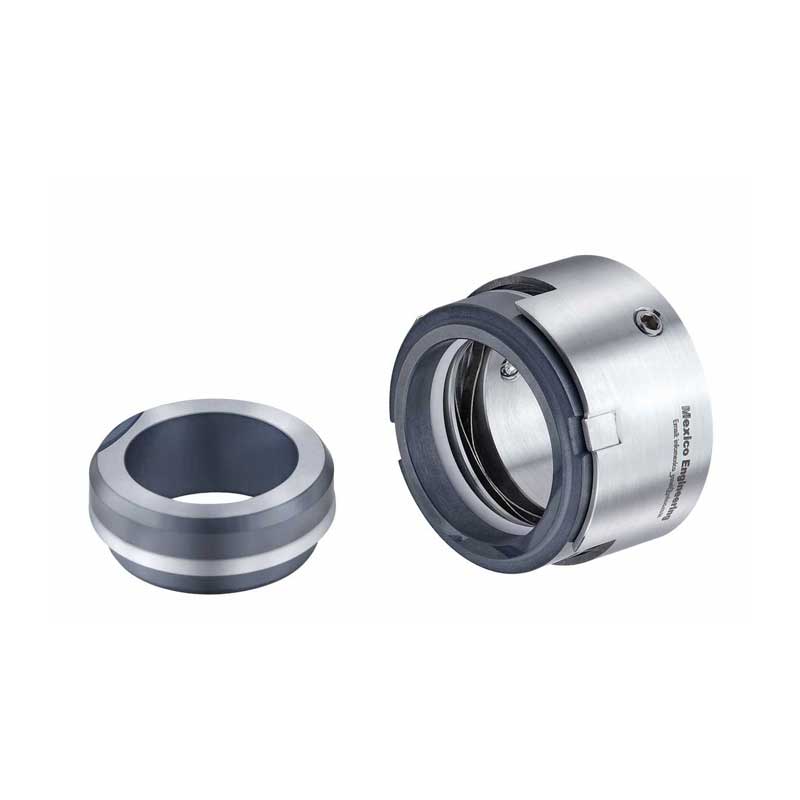

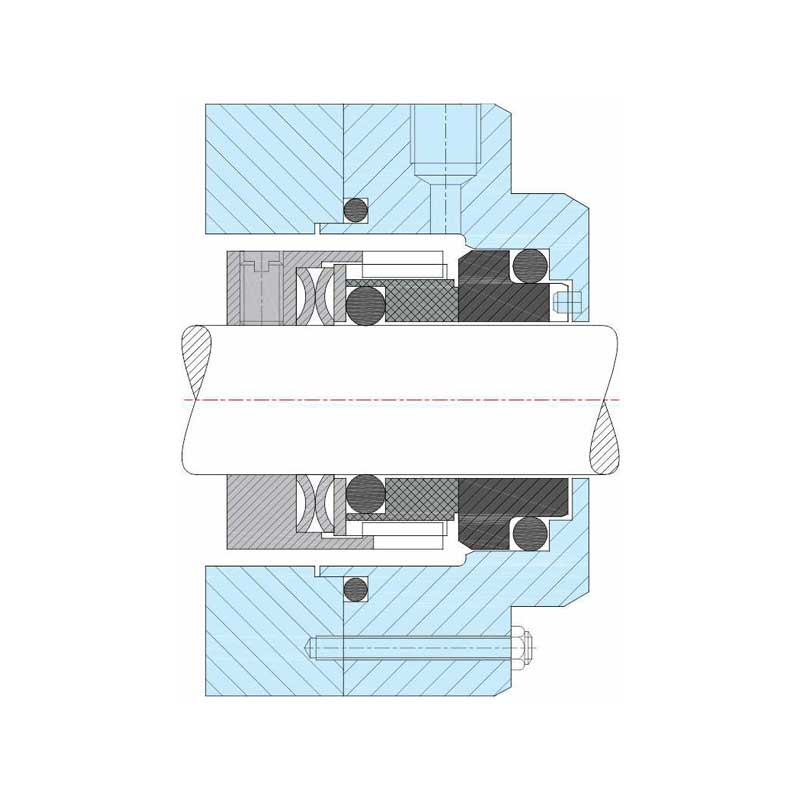

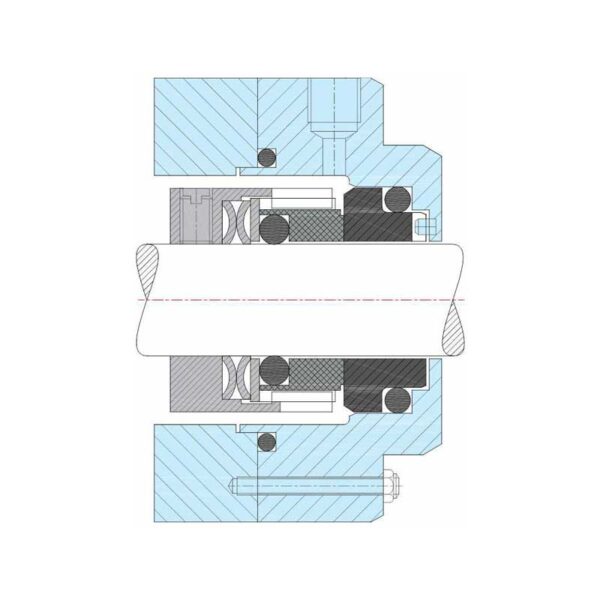

Single Wave Spring Seals – Series 13M
Series 13M are single wave spring seals for most general application, being used in industries like Paper and Pulp, Sugars, Sewage, Polymer, Rubber etc. Its compact design with reduced axial length is the major advantage of using single wave spring seals. These seal are designed to handle dirty and slurry application as spring clogging does not occur.
Seal features
- Single seal
- Inside mounted
- Unbalanced
- Wave spring loaded seal
Applications
- Corrosive chemical
- Hydrocarbon
- General and light chemical
Operating limit
- Seal size : 14 mm to 150mm
- Pressure : 8 kg/cm2
- Temp : -20°C…. to 180°C
- Speed : up to 20 m/s
Material
- Seal face : Carbon, Ceramic, Silicon, Tungsten carbide
- Secondary sealing : Viton, GFT, PTFE, Aflas, TTV
- Material : SS 316, Hastelloy c, Alloy-20
