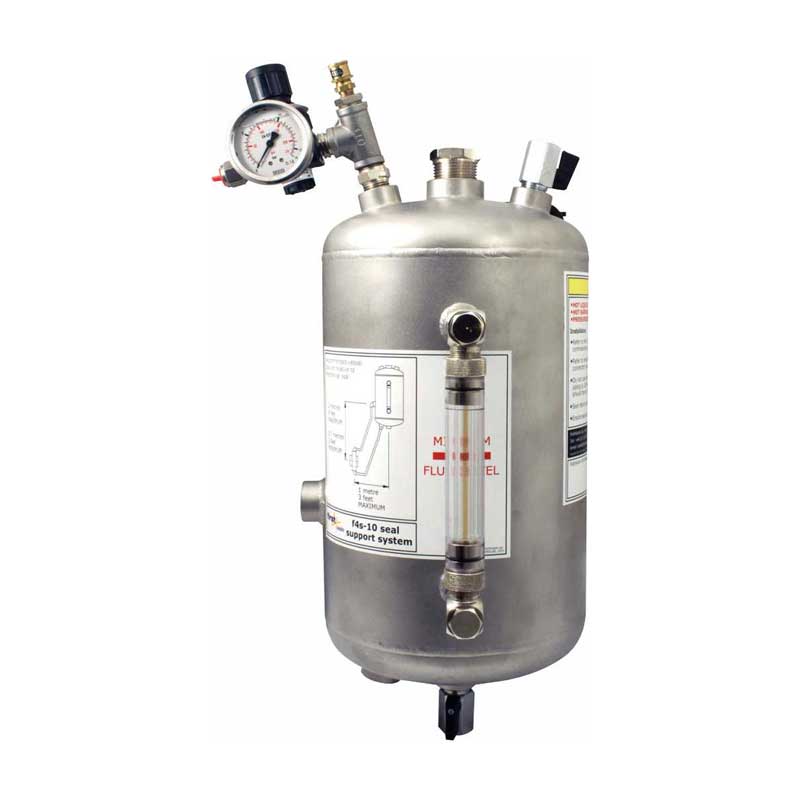

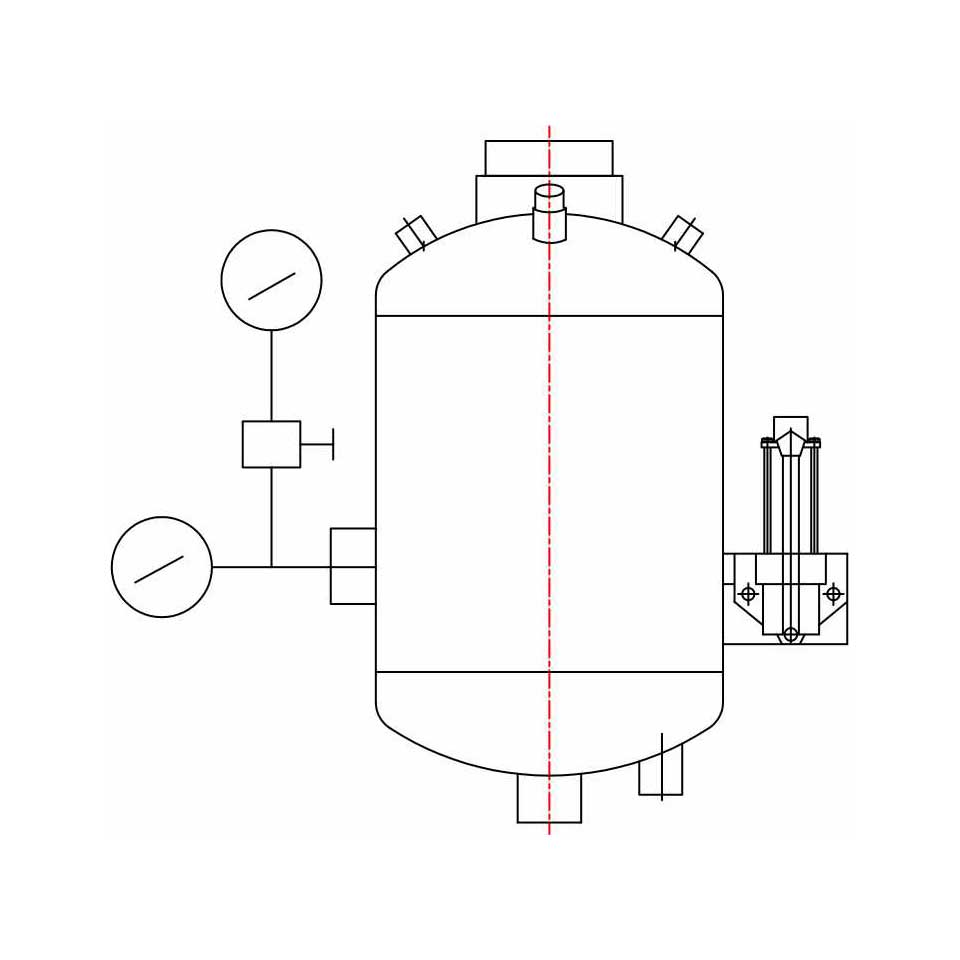

Thermosyphon – Series MTS-10
Series MTS-10 is a thermosyphon system, which is basically used as a storage and pressurising unit. Using thermosyphon system it is possible to supply barrier fluid to double mechanical seal in back to back or tandem arrangement. The pressure of barrier fluid is higher than the pressure of the fluid to be sealed. The temperature of the barrier fluid from seal to thermosyphon is controlled by the cooling coil inside the shell.
Seal features
- Contents of tank : 10 litres
- Operating Volume : 2 litres
- Operating Pressure : 20 kg/cm2
- Working Temperature : -60°C to +200°C
- Hydraulic test pressure – 15 bar
- Cooling water inlet- ½” npt
- Cooling water outlet ½” npt
- Barrier fluid inlet – ½” npt
- Barrier fluid outlet- ½” npt
- Drain- ½” npt
Metal Parts
- Thermosyphon shell : Carbon steel / SS 304 /SS 316
- Cooling coil : SS 304 / SS 316
- Empty weight : 34 kg (Approx)
