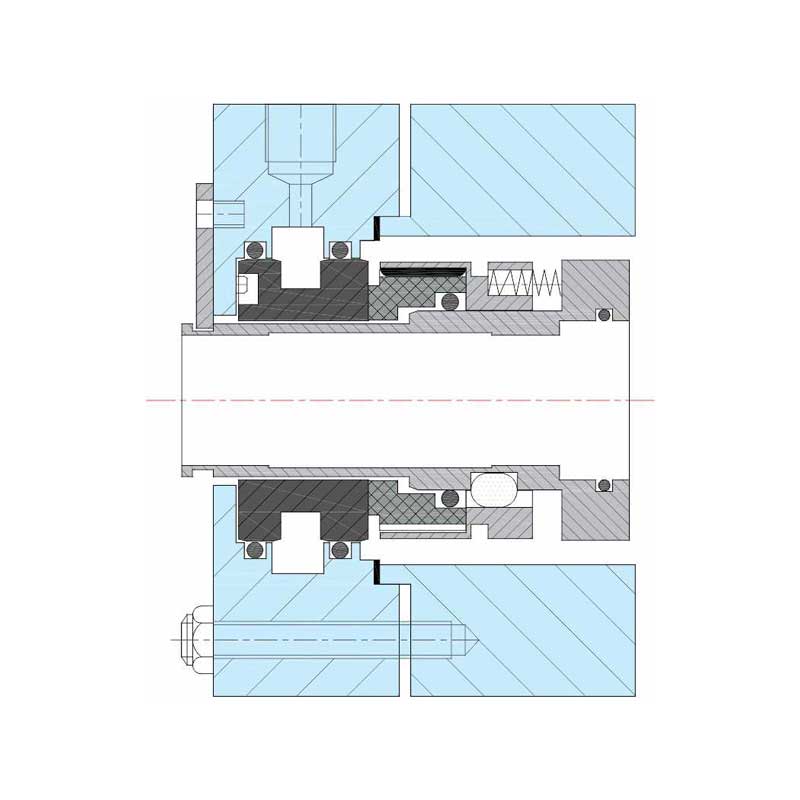

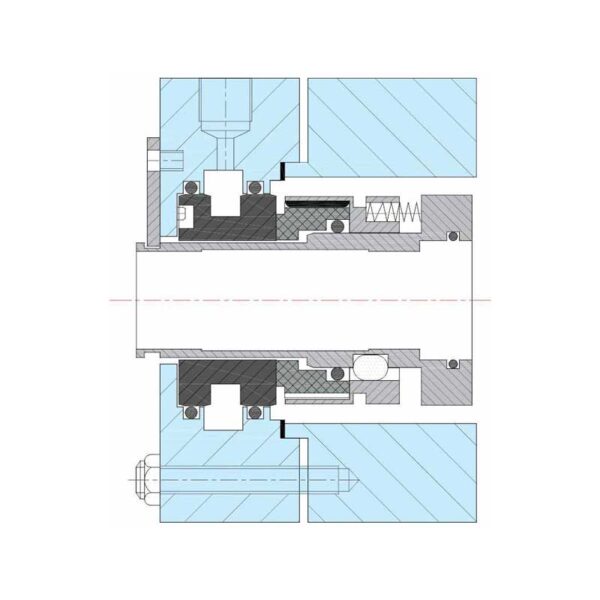

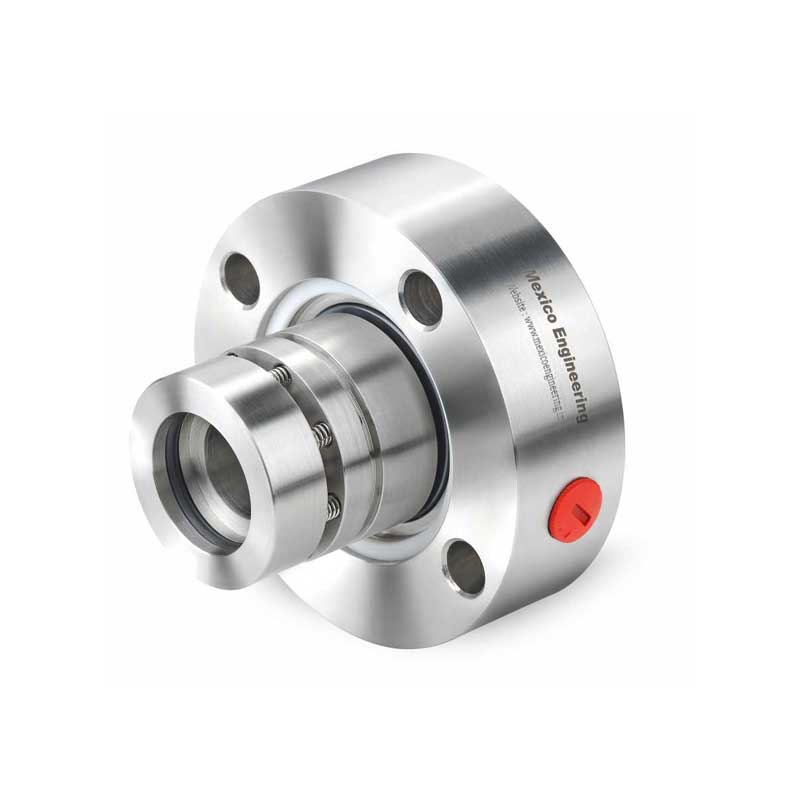

High Pressure Cartridge Seals – Series 12SC/HP
Series 14DC are double acting cartridge mechanical seals having integral sleeve and gland plate. These multi spring design seal are pre-assembled, which could be directly installed without any dimensional adjustment during installation. These seals are balanced, independent of direction of rotation and are offered in back to back and tandem arrangements as per API plan-53
Seal features
- Double seal, Cartridge unit
- Inside Mounted, Balanced
- Easy Installation, Field repairable
- Interchangeable mating rings & seal ring
Applications
- Pulp & paper industries
- Chemical industries Slurry Pump
- Sludge Pump
Operating limit
- Seal size : 20 mm to 100mm
- Pressure : 10 kg/cm2
- Temp : -20°C…. to 180°C
- Speed : up to 20 m/s
Material
- Seal face : Carbon, Ceramic, Silicon, Tungsten Carbide
- Secondary sealing : Viton, PTFE, GFT, Kalrez, Aflas
- Metal Components : SS 316 / Hastelloy c / Alloy -20
