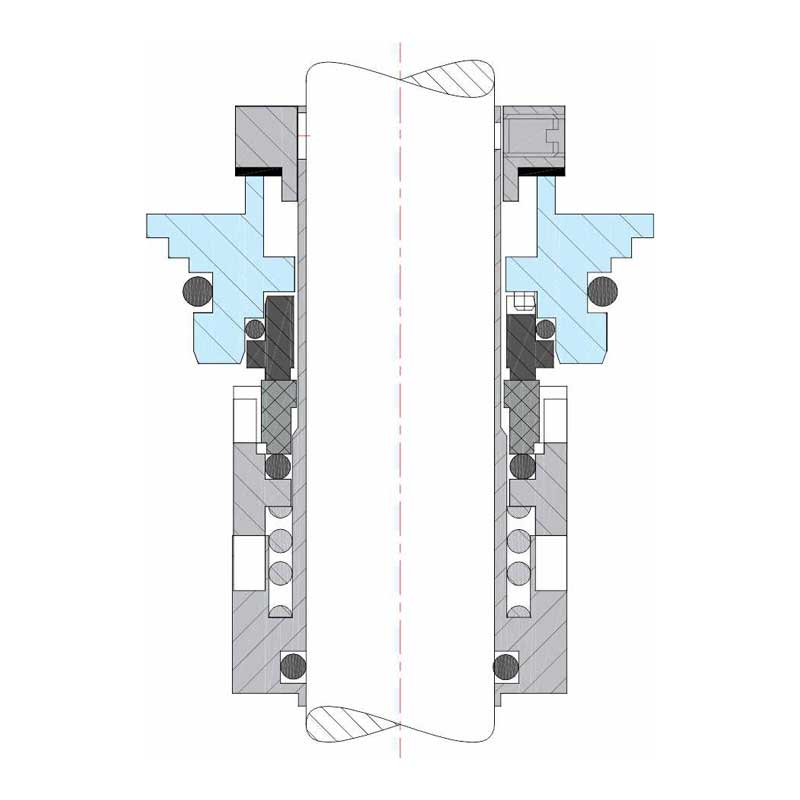

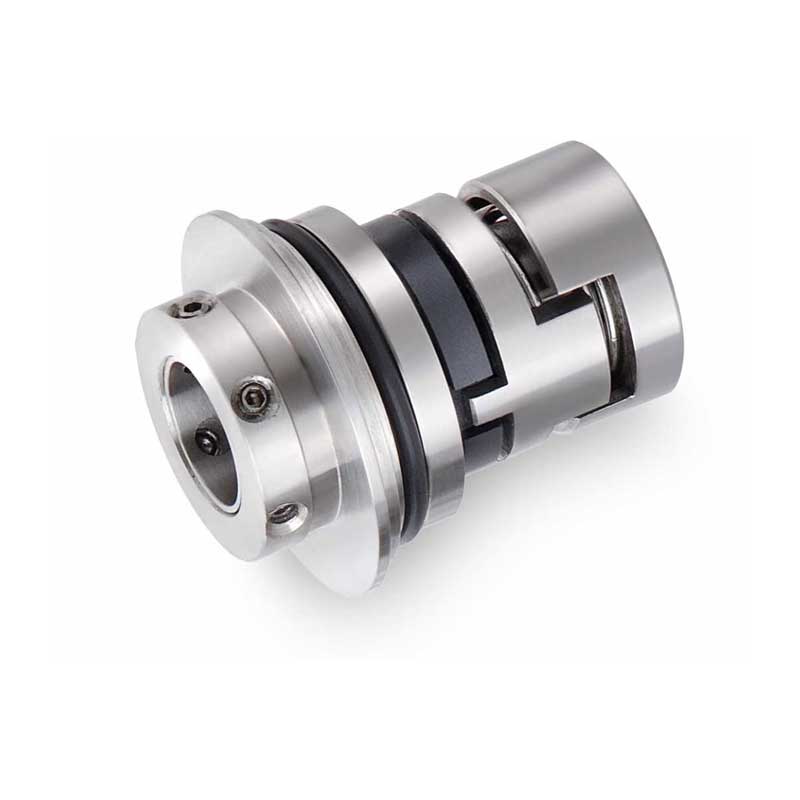

High Pressure Cartridge Seals

Operating limit

• Seal size : 12 mm, 16mm & 22mm
• Pressure : 6 kg/cm2
• Temp : -20°C…. to 180°C
• Speed : up to 25 m/s

Material

• Seal face : Silicon, Tungsten Carbide
• Secondary sealing : Viton, EPDM, Aflas
• Metal Components : SS 316
